Hammond T-500 series Schematics

If you want to save a schematic to your hard drive, right click on the link and select 'save as..'

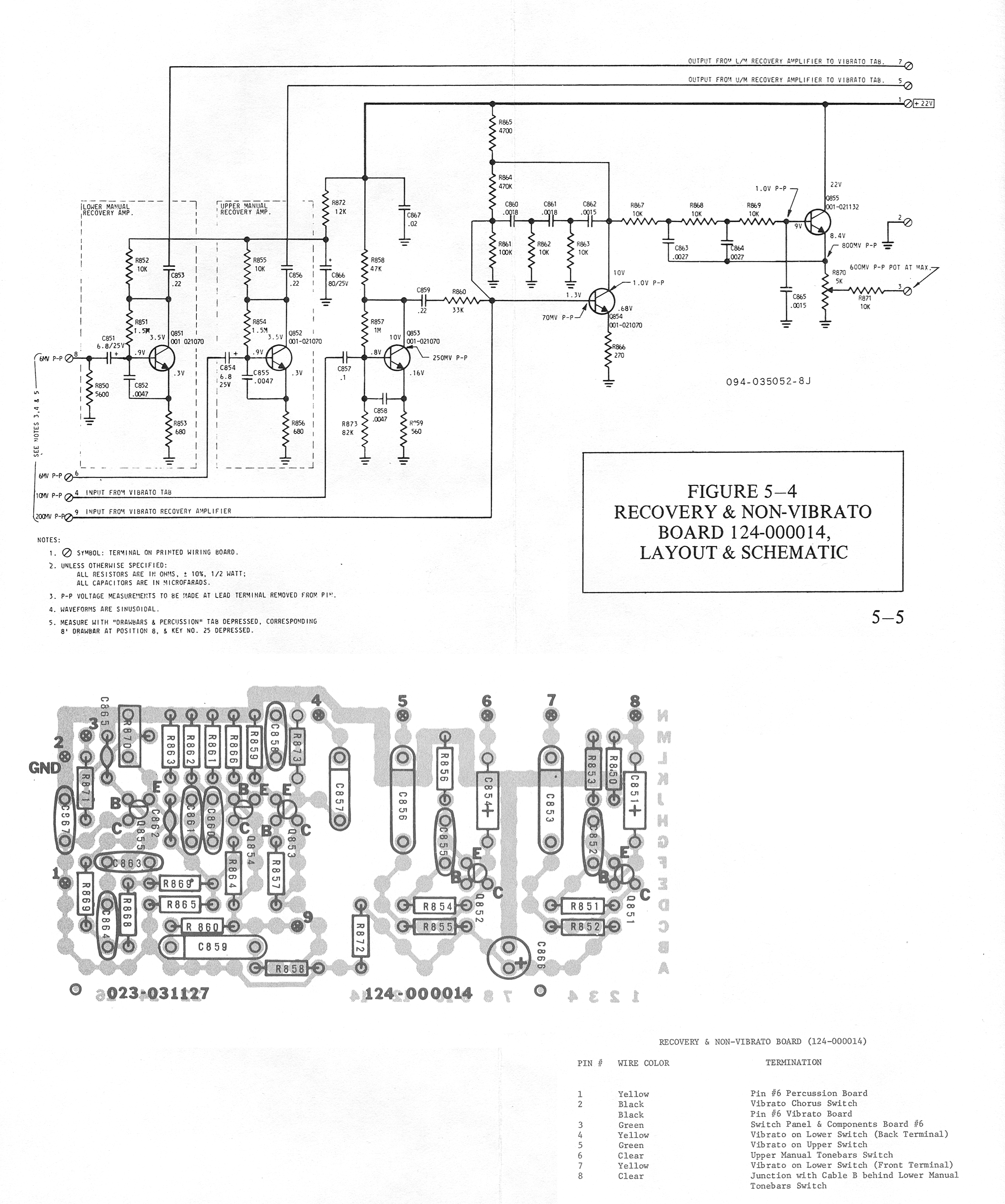

Recovery / Non-Vibrato Board

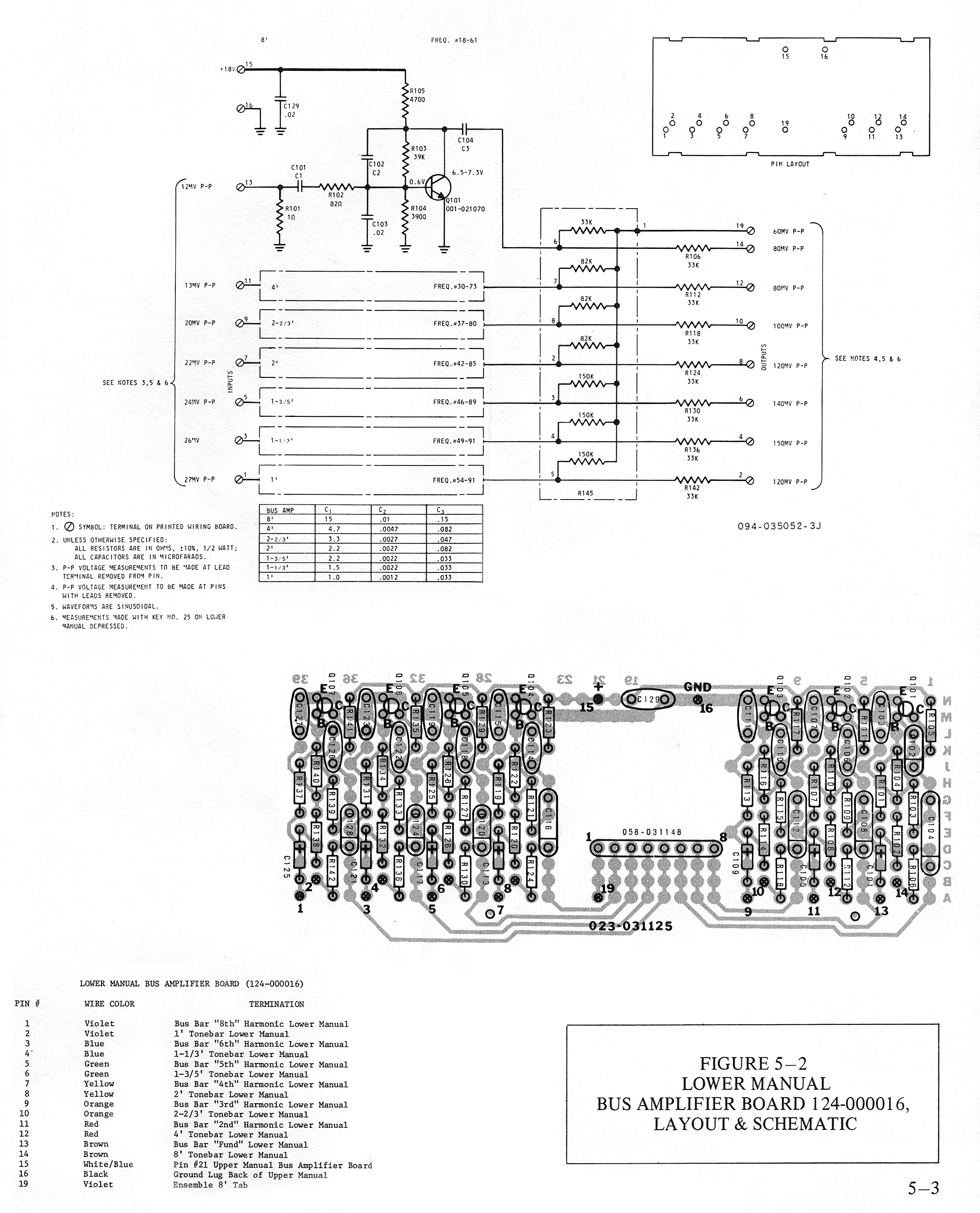

Lower bus amp board

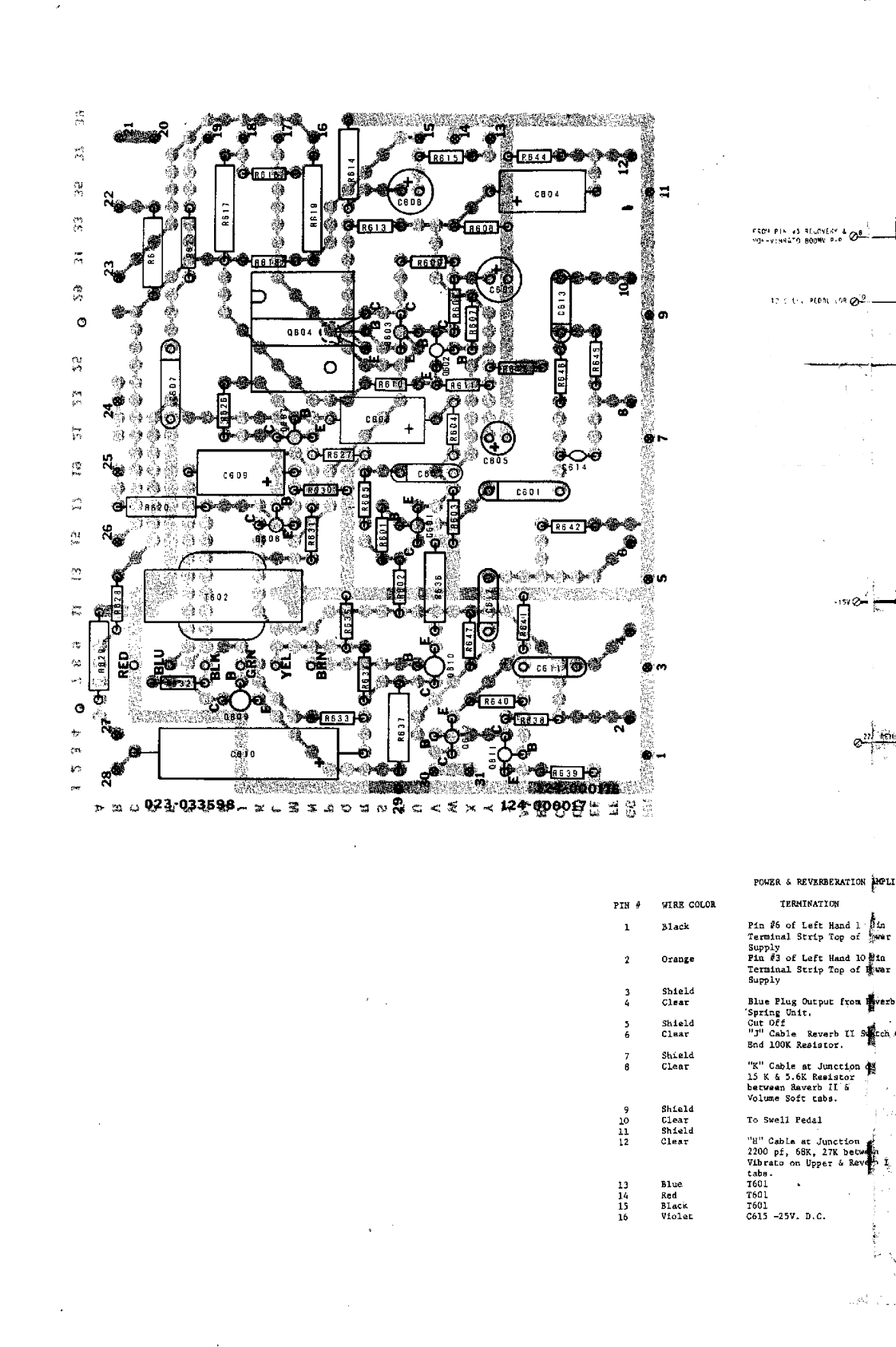

Main amplifier L

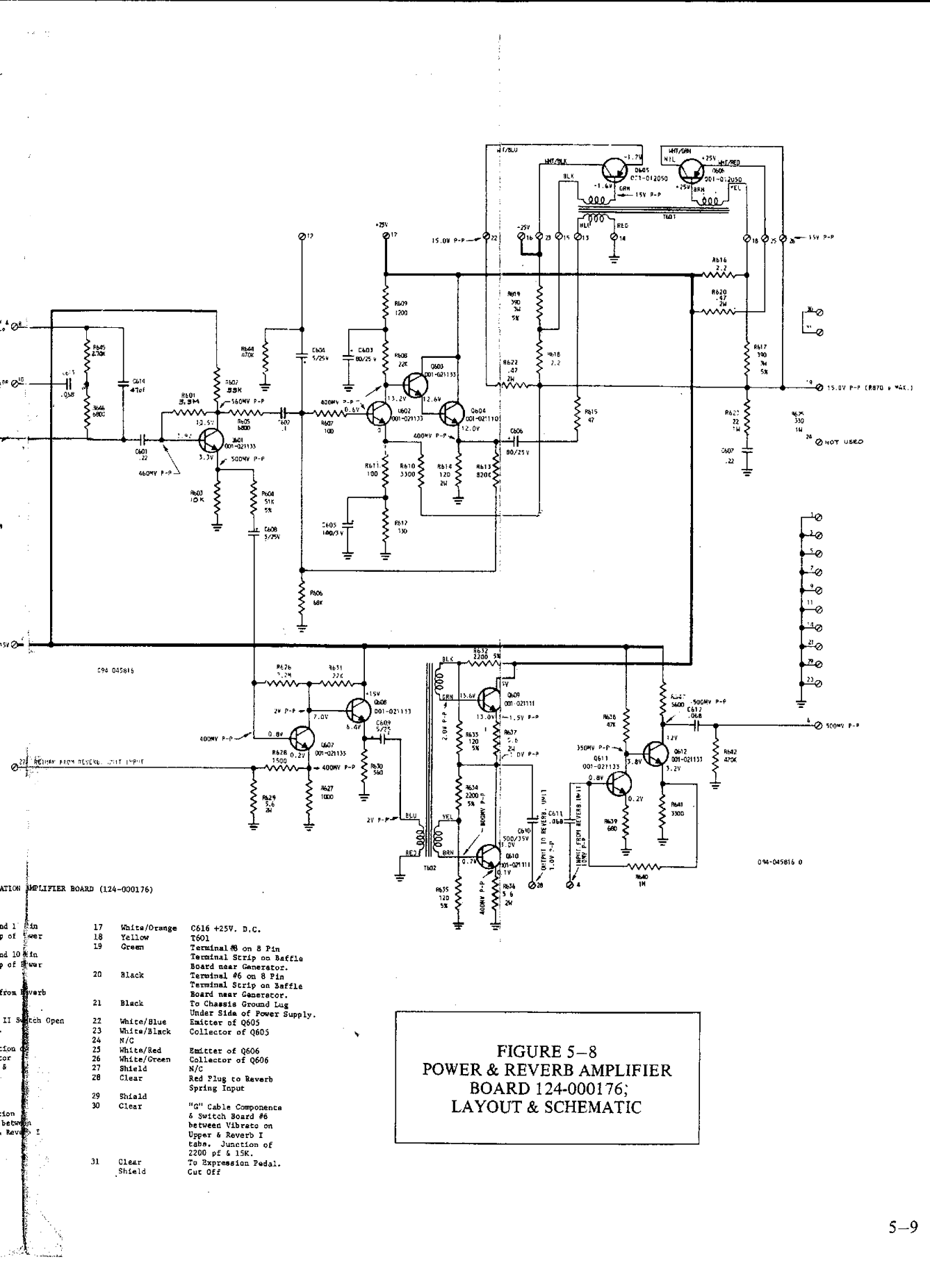

Main amplifier R

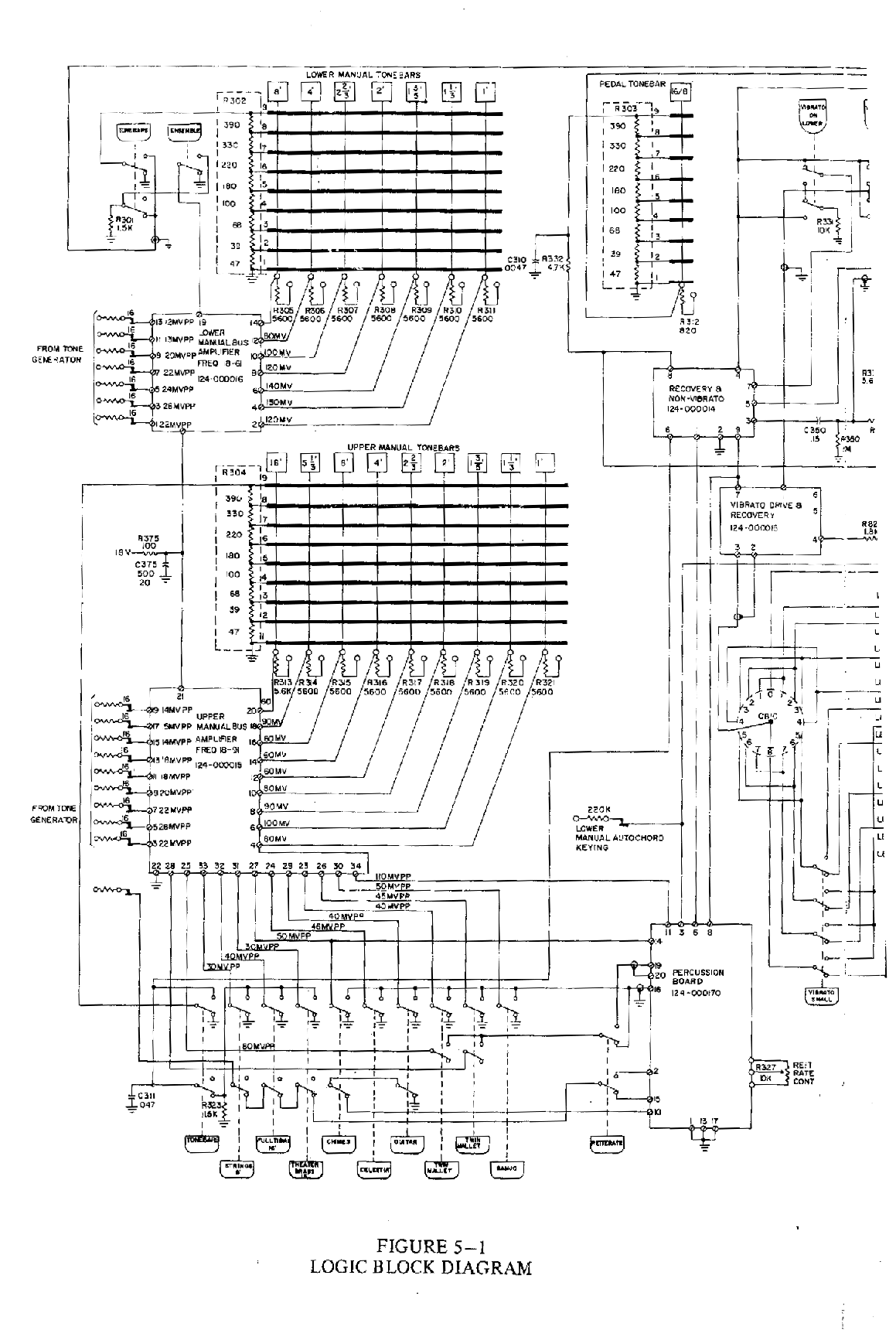

Main diagram L

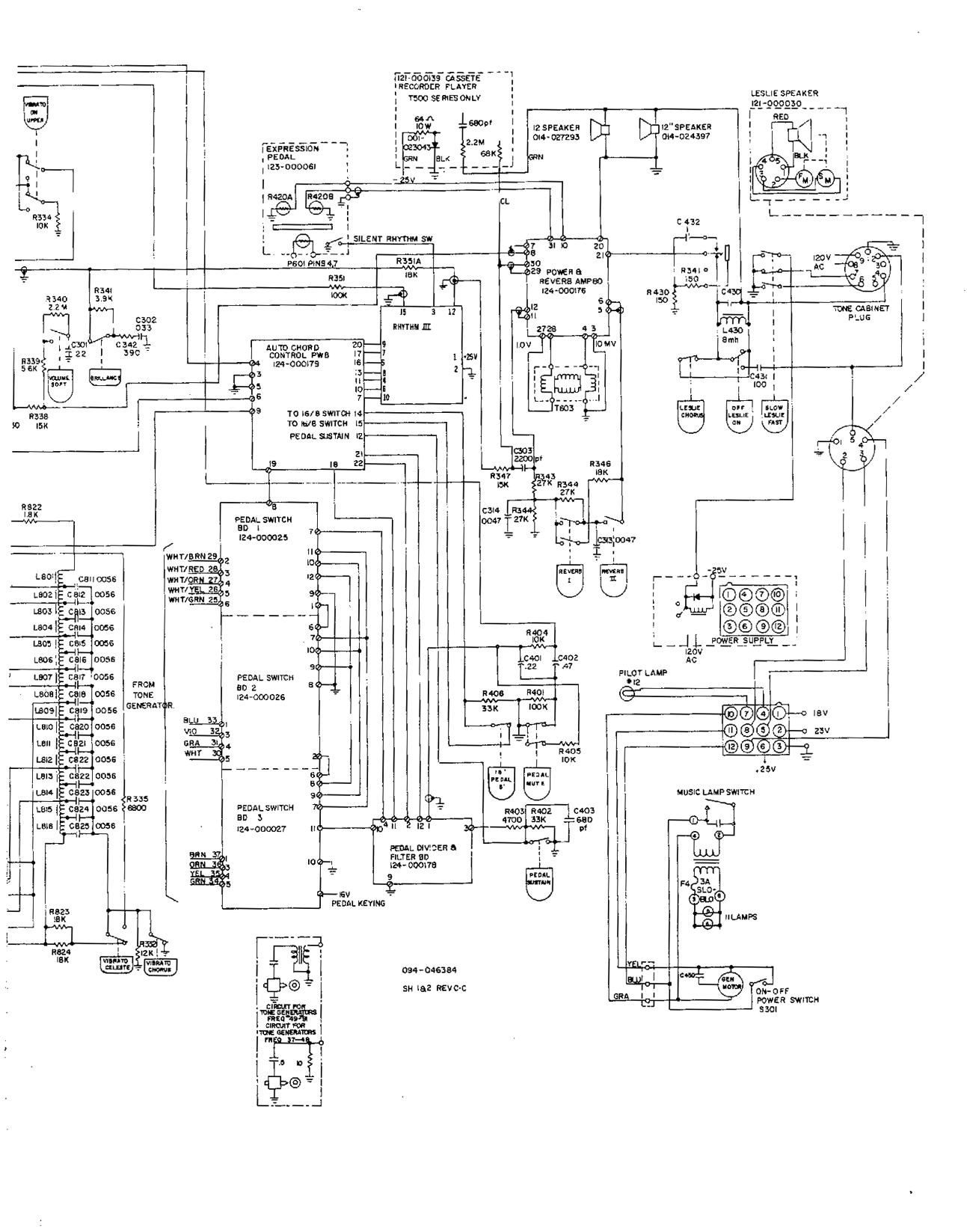

Main diagram R

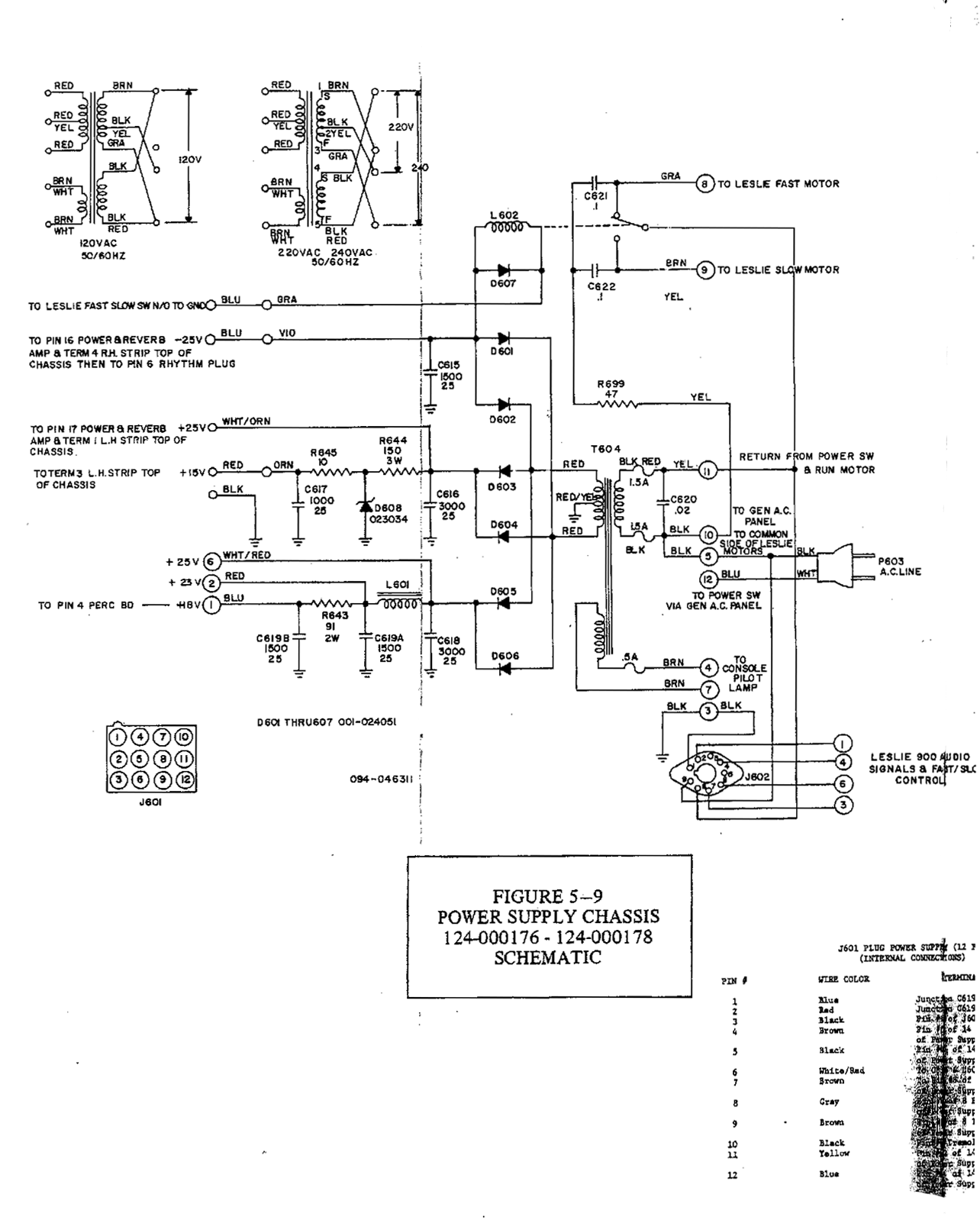

Power supply L

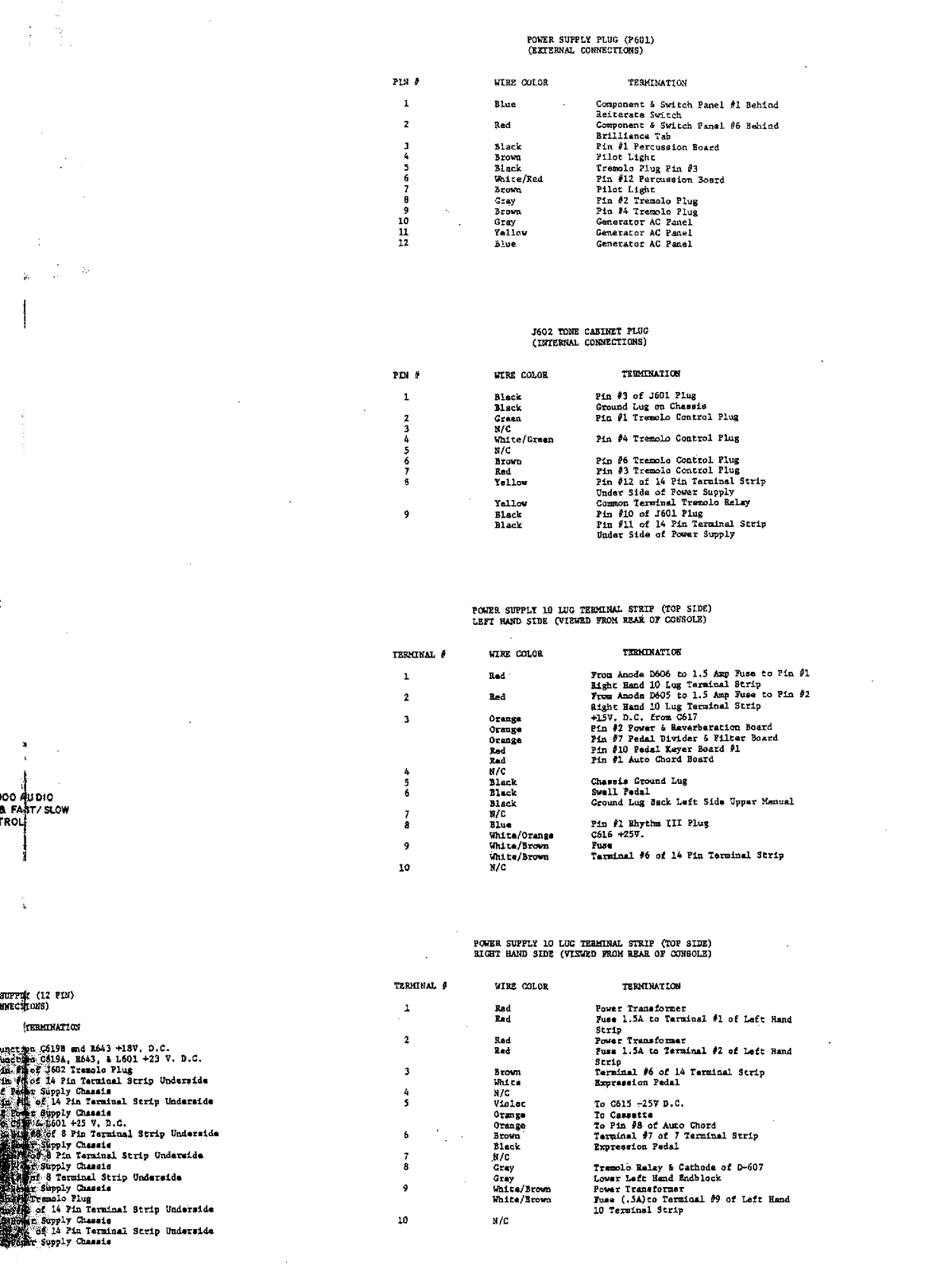

Power supply R

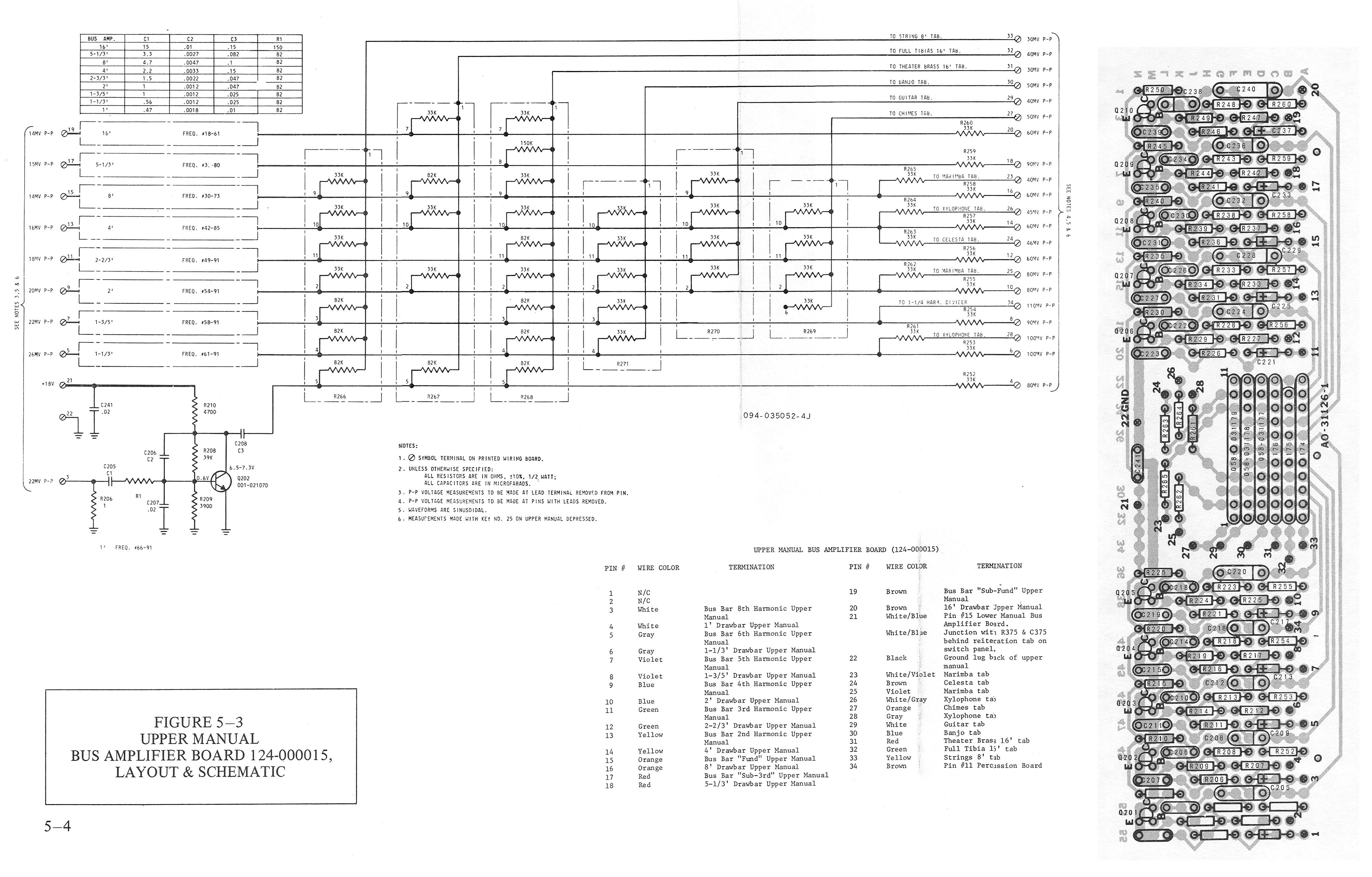

Upper bus amp

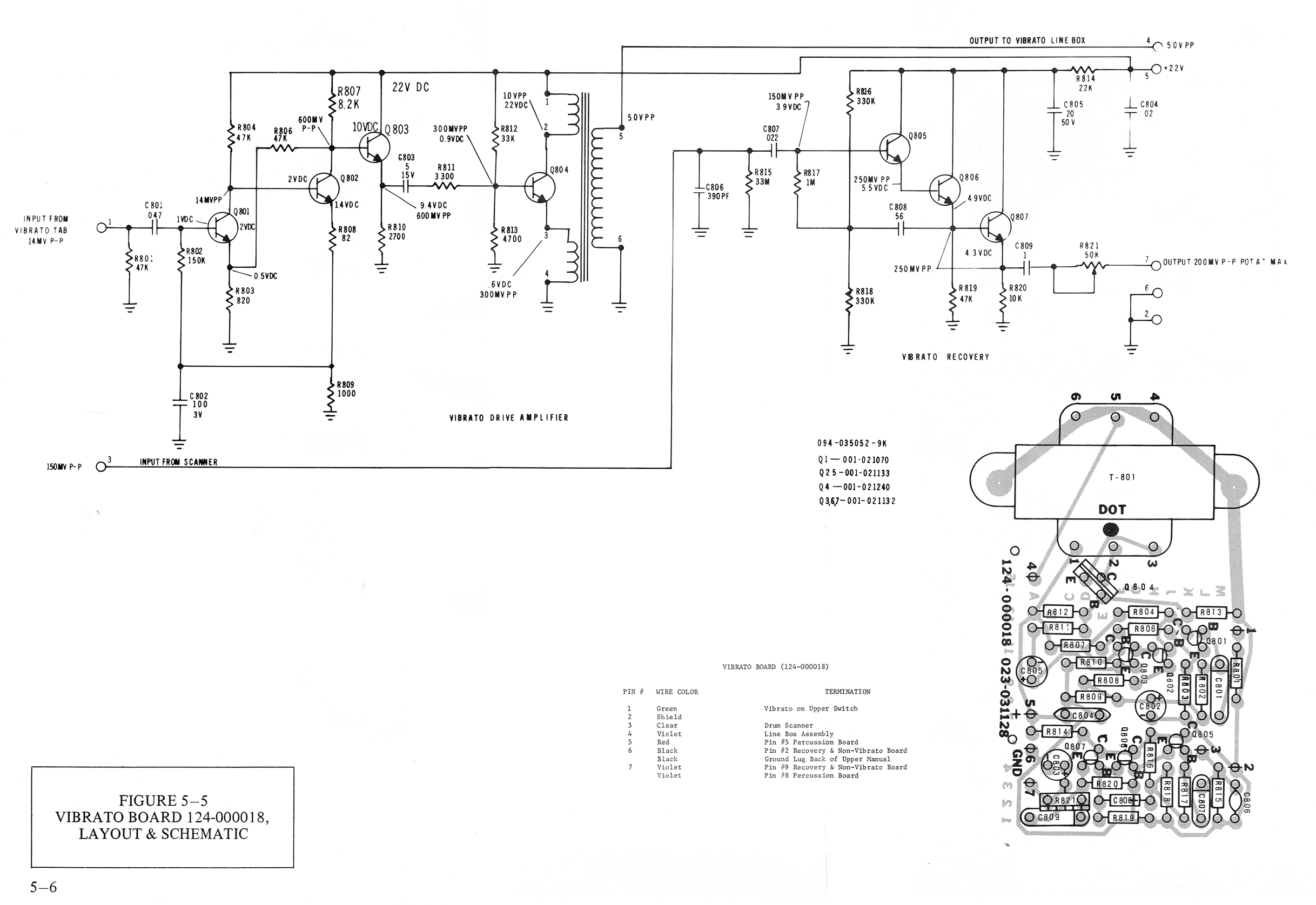

Vibrato board

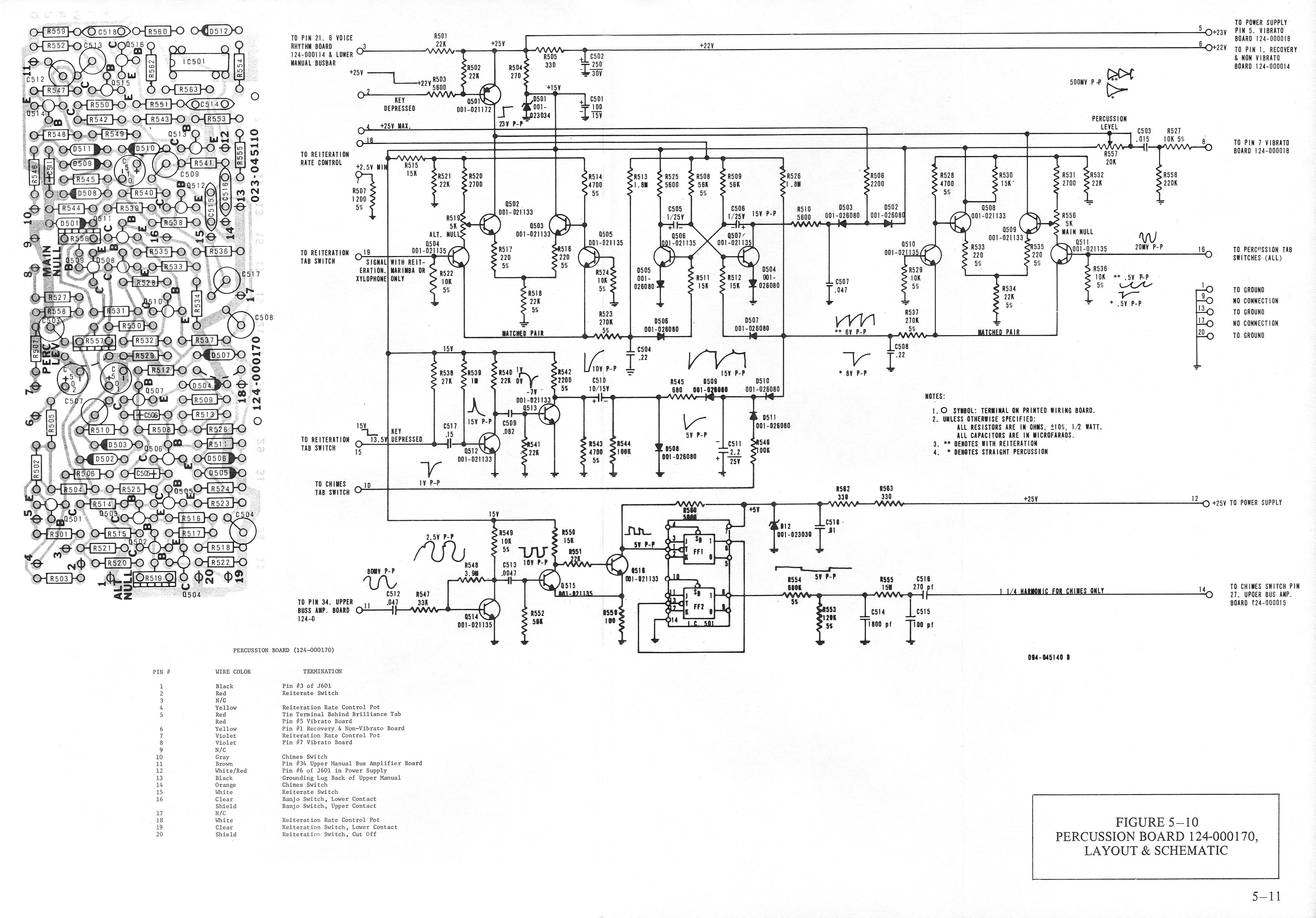

Percussion board
