Tech Tips from
Captain Foldback, page 2

The 'mixing' Leslie kit - #8444

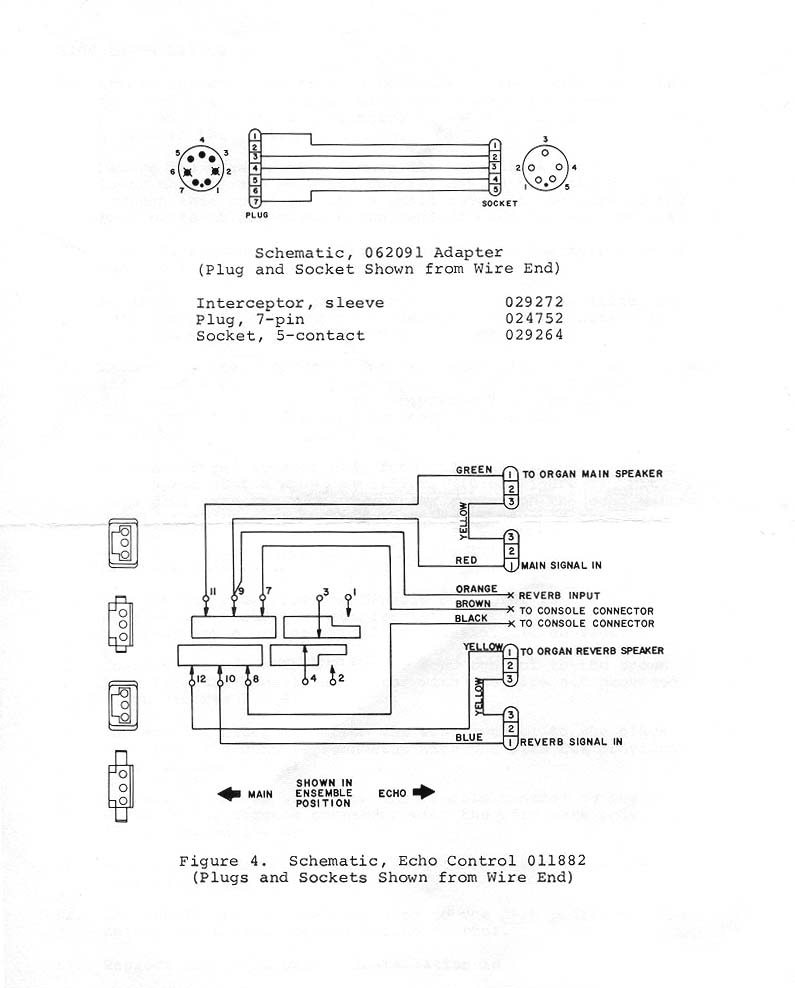

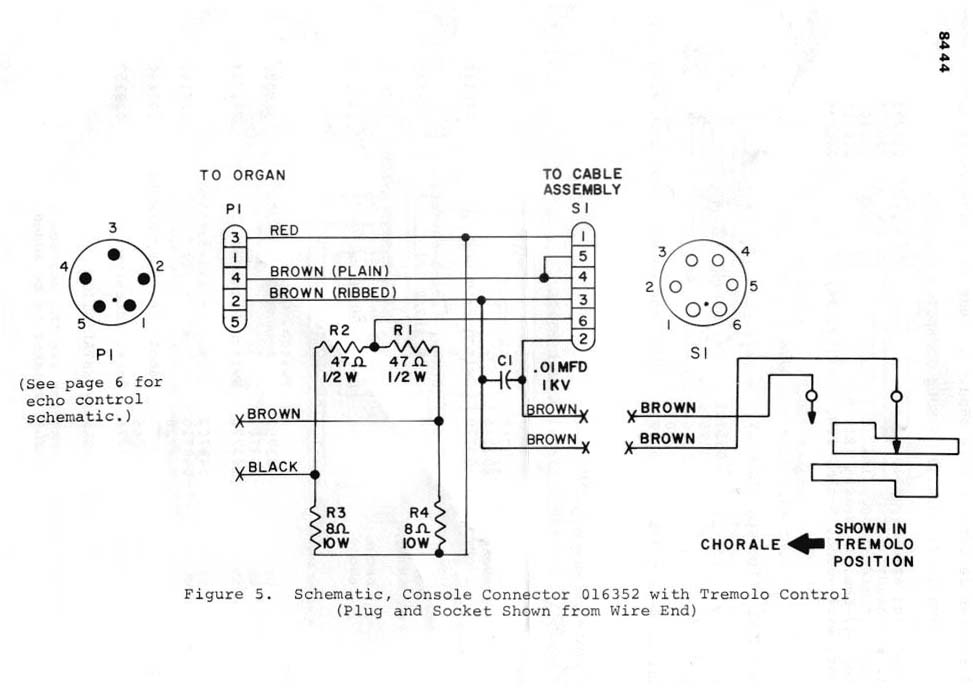

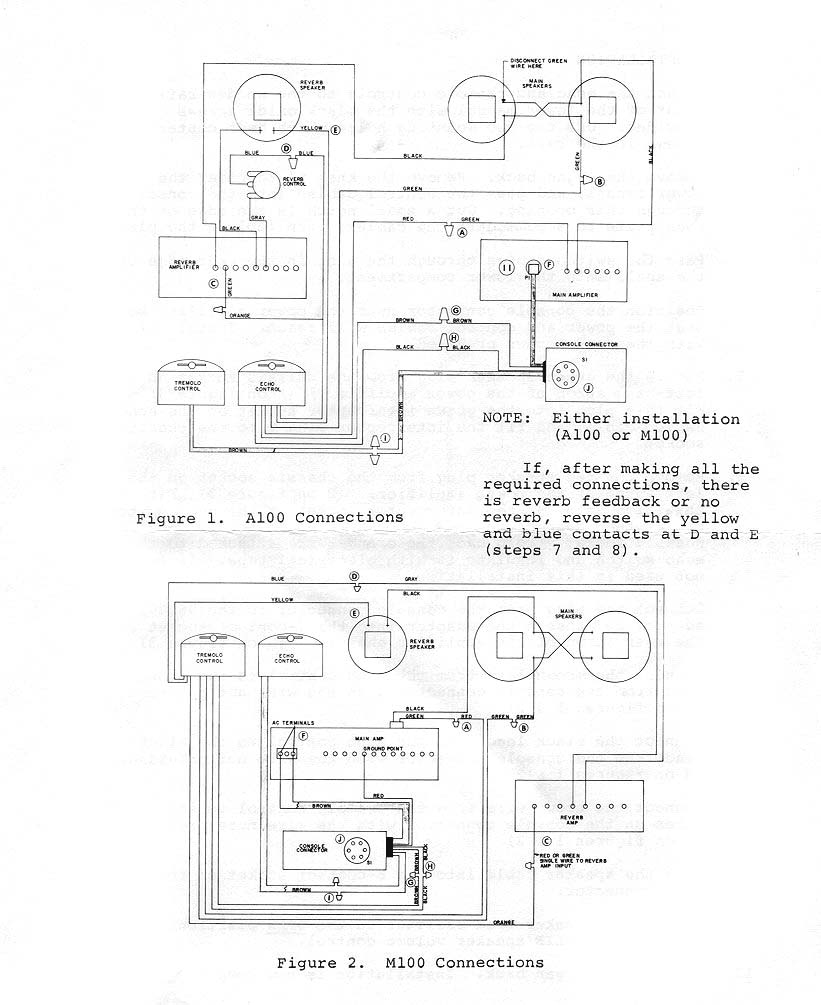

If your Hammond organ is two channel - like the A-100, E-100 and M-100 series organs, you can use this Leslie kit to mix the reverb channel into the main signal for use with a Leslie 147 (and similar). If you can't find the finished kit, the schematics should enable you to create one out of standard components. As always, be careful when you are working with circuits intended for AC mains voltages!
